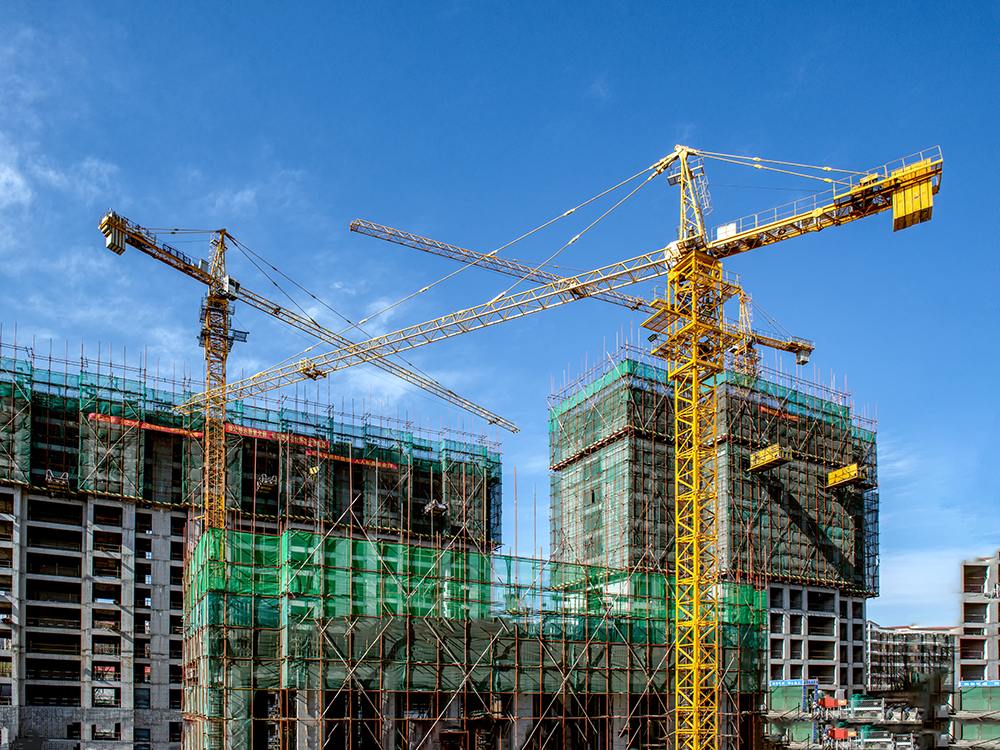

Luffing Tower Crane GHD5522-12

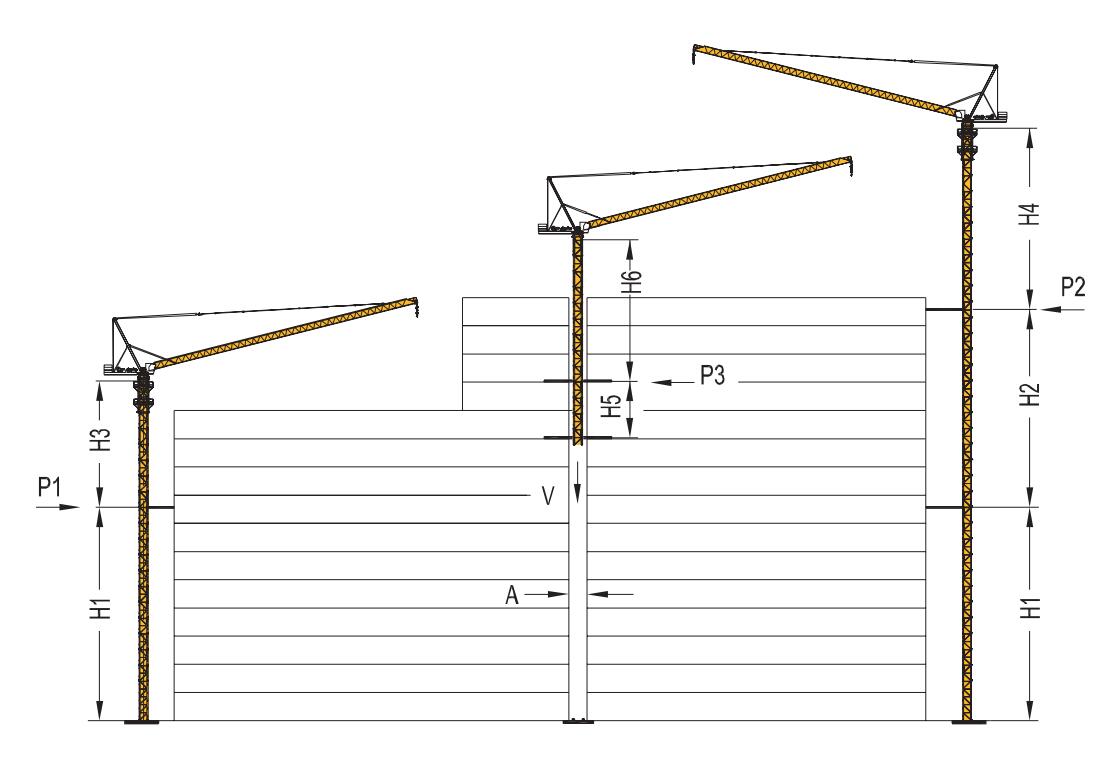

Anchorages
Tower body |
TG20 |
TG20A |
||||
|
m |
Operative mode |
Off working state |
m |
Operative mode |
Off working state |
t |
t |
t |
t |
|||
H1 |
27,0 |
― |
― |
33,0 |
― |
― |
H2 |
24,0 |
― |
― |
30,0 |
― |
― |
H3 |
28,6 |
― |
― |
34,6 |
― |
― |
H4 |
25,6 |
— |
— |
31,6 |
— |
— |
H5 |
12,0 |
― |
― |
12,0 |
― |
— |
H6 |
24,0 |
― |
_ |
30,0 |
― |
― |
P1 |
— |
9,2 |
17,6 |
― |
11,5 |
24,2 |
P2 |
― |
9,5 |
16,3 |
― |
10,8 |
22,5 |
P3 |
― |
9,7 |
18,5 |
― |
12,7 |
26,5 |
V |
― |
63,2 |
51,2 |
― |
70,7 |
58,7 |

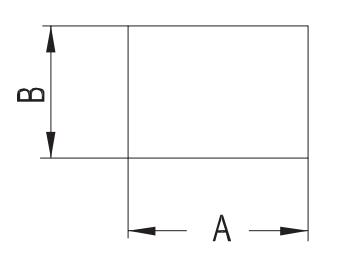

A |
2,6 |
― |
― |
2,6 |
― |
― |
B |
2,2 |
2,2 |
||||
Mechanisms
Mechanical Performance |
Single-Head |
Double Headed |
|
kW |
|
|||||||
Lifting |
m/min |
100 |
70 |
52 |
40 |
50 |
35 |
26 |
20 |
500m |
45 |
|
t |
2,0 |
3,0 |
4,5 |
6,0 |
4,0 |
6,0 |
9,0 |
12,0 |
||||
m/min |
0-80 |
0-40 |
0-40 |
0-20 |
530m |
51.5 |
Selectable |
|||||
t |
3,0 |
6,0 |
6,0 |
12,0 |
||||||||
Amplitude |
min |
No-load 15°~85°t=2.50 |
190m |
45 |
|
|||||||
There is a load 15°~85°t=3.50 | ||||||||||||
Rotation |
r/min |
0.68 |
95Nm×2 |
|
||||||||
Walk |
m/min |
22/11 |
3,4/1,7 ×4 |
|
||||||||
Power supply |
380V 50Hz / 440V 60Hz |
|||||||||||
Total power |
115 kVA/ 123 kVA |
|||||||||||

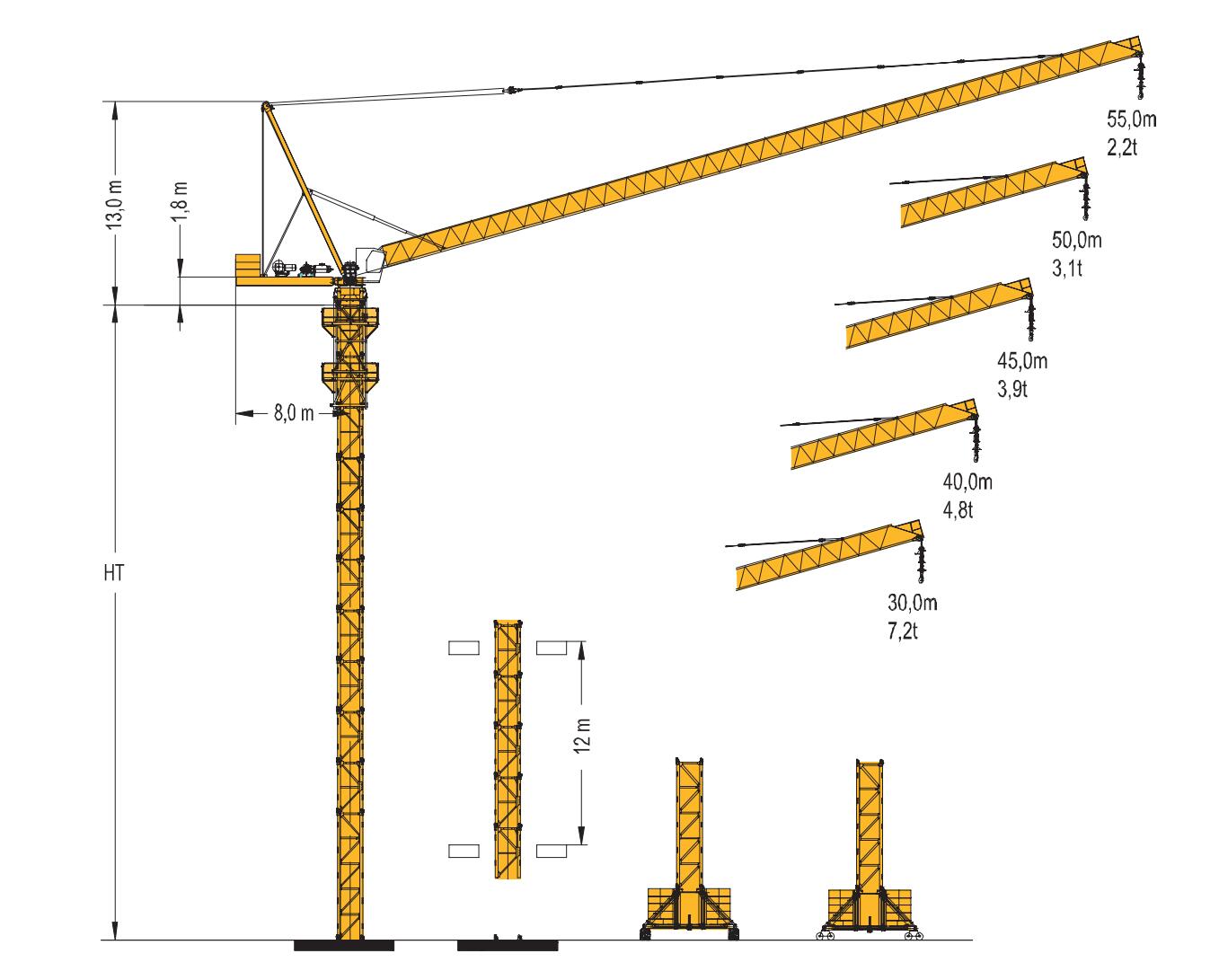

Product Size
Jib

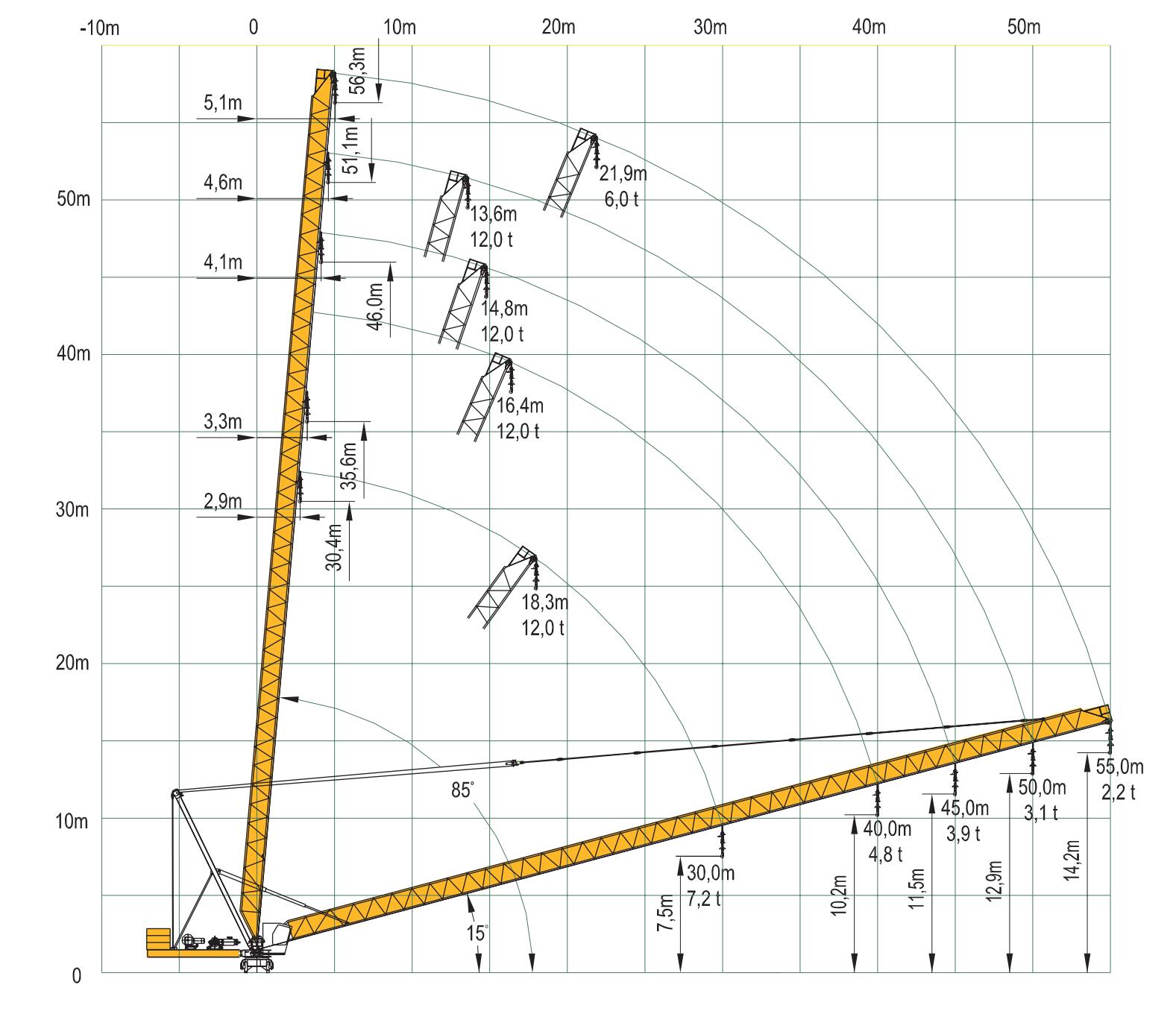

Load characteristics
| 55.0 | Single hook | 5.1 → | 10 | 15 | 21.9 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | m |
| 6.00 | 6.00 | 6.00 | 5.20 | 4.29 | 3.63 | 3.14 | 2.76 | 2.40 | 2.20 | t | |||
| 50.0 | 4.6 → | 10.0 | 13.6 | 20.0 | 27.0 | 30.0 | 35.0 | 40.0 | 45.0 | 50.0 | m | ||
| Single hook | 6.00 | 6.00 | 6.00 | 6.00 | 5.37 | 4.56 | 3.95 | 3.48 | 3.10 | t | |||
| Double hook | 12.00 | 12.00 | 8.00 | 5.80 | 5.17 | 4.36 | 3.75 | 3.28 | 2.90 | t | |||
| 45.0 | 4.1 → | 10 | 14.8 | 20 | 25 | 29.3 | 35 | 40 | 45 | m | |||
| Single hook | 6.00 | 6.00 | 6.00 | 6.00 | 6.00 | 5.02 | 4.39 | 3.90 | t | ||||
| Double hook | 12.00 | 12.00 | 7.90 | 6.63 | 5.65 | 4.73 | 4.13 | 3.70 | t | ||||
| 40.0 | 3.7 → | 10.0 | 16.4 | 20.0 | 25.0 | 32.4 | 35.0 | 40.0 | m | ||||
| Single hook | 6.00 | 6.00 | 6.00 | 6.00 | 6.00 | 5.53 | 4.80 | t | |||||
| Double hook | 12.00 | 12.00 | 9.70 | 7.66 | 5.78 | 5.33 | 4.60 | t | |||||
| 30.0 | 2.9 → | 10 | 18 | 20 | 25 | 27 | 30 | m | |||||
| Single hook | 6.00 | 6.00 | 6.00 | 6.00 | 6.00 | 6.00 | t | ||||||
| Double hook | 12.00 | 12.00 | 11.05 | 8.74 | 8.06 | 7.20 | t | ||||||

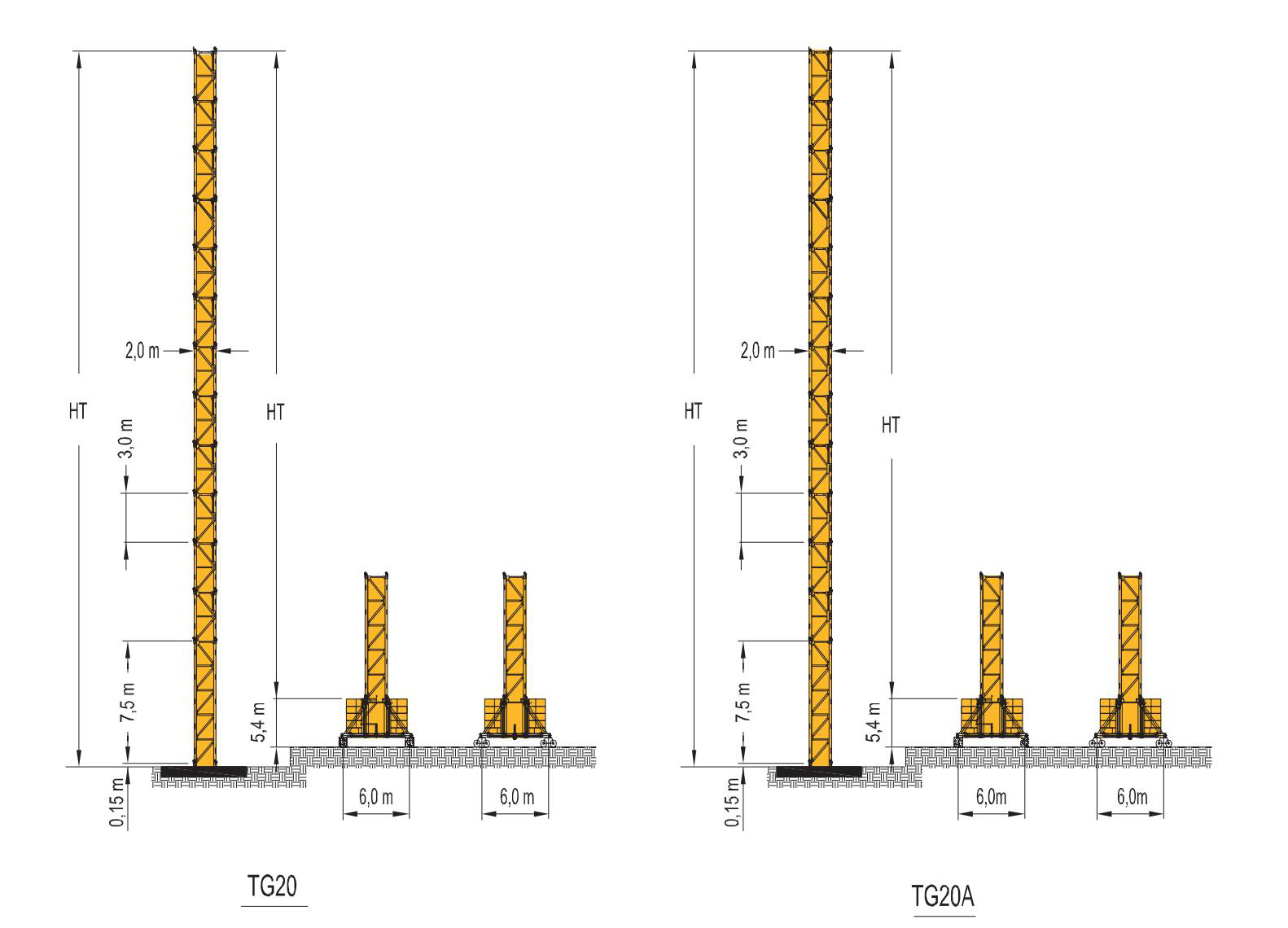

Tower
Fixed type | ||||||
Tower body |
Arm length |
|||||
No |
HT（m） |
30 |
40 |
45 |
50 |
55 |
1 |
7.6 |
● |
|
● |
|
|
2 |
10.6 |
● |
|
|
|
|
3 |
13.6 |
|
|
● |
|
|
4 |
16.6 |
|
|
● |
|
|
5 |
19.6 |
|
|
● |
|
|
6 |
22.6 |
● |
|
|
|
|
7 |
25.6 |
● |
|
|
|
|
8 |
28.6 |
|
|
|
|
|
9 |
31.6 |
● |
|
|
|
|
10 |
34.6 |
|
|
● |
|
|
11 |
37.6 |
|
|
● |
|
|
12 |
40.6 |
|
|
|
|
|
Heavy duty or walking type | ||||||
Tower body |
Arm length |
|||||
No |
HT（m） |
30 |
40 |
45 |
50 |
55 |
1 |
7.5 |
● |
|
|
|
|
2 |
10.5 |
● |
|
|
|
|
3 |
13.5 |
|
|
● |
|
|
4 |
16.5 |
|
|
● |
|
|
5 |
19.5 |
|
|
● |
|
|
6 |
22.5 |
● |
|
|
|
|
7 |
25.5 |
● |
|
|
|
|
8 |
28.5 |
|
|
|
|
|
9 |
31.5 |
● |
|
|
|
|
Fixed type | ||||||
Tower body TG20 |
Arm length |
|||||
No |
HT（m） |
30 |
40 |
45 |
50 |
55 |
1 |
7.6 |
● |
|
|
|
|
2 |
10.6 |
● |
|
|
|
|
3 |
13.6 |
|
|
● |
|
|
4 |
16.6 |
|
|
● |
|
|
5 |
19.6 |
|
|
● |
|
|
6 |
22.6 |
● |
|
|
|
|
7 |
25.6 |
● |
|
|
|
|
8 |
28.6 |
|
|
|
|
|
9 |
31.6 |
● |
|
|
|
|
10 |
34.6 |
|
|
● |
|
|
11 |
37.6 |
|
|
● |
|
|
12 |
40.6 |
|
|
● |
|
|
13 |
43.6 |
● |
|
|
|
|
14 |
46.6 |
● |
|
|
|
|
15 |
49.6 |
|
|
|
|
|
Heavy duty or walking type | ||||||
Tower body |
Arm length |
|||||
No |
HT（m） |
30 |
40 |
45 |
50 |
55 |
1 |
7.5 |
● |
|
|
|
|
2 |
10.5 |
● |
|
|
|
|
3 |
13.5 |
|
|
● |
|
|
4 |
16.5 |
|
|
● |
|
|
5 |
19.5 |
|
|
● |
|
|
6 |
22.5 |
● |
|
|
|
|
7 |
25.5 |
● |
|
|
|
|
8 |
28.5 |
|
|
|
|
|
9 |
31.5 |
● |
|
|
|
|
10 |
34.5 |
|
|
● |
|
|
11 |
37.5 |
|
|
● |
|
|
12 |
40.5 |
|
|
● |
|
|
