Luffing Tower Crane GHD6090-50

Meet the GHD6090-50 luffing tower crane from Shandong Dazheng International Trade Co., Ltd., a pinnacle of engineering designed for the most demanding construction projects. This crane stands out for its impressive lifting capacity, reaching new heights in both performance and safety standards.

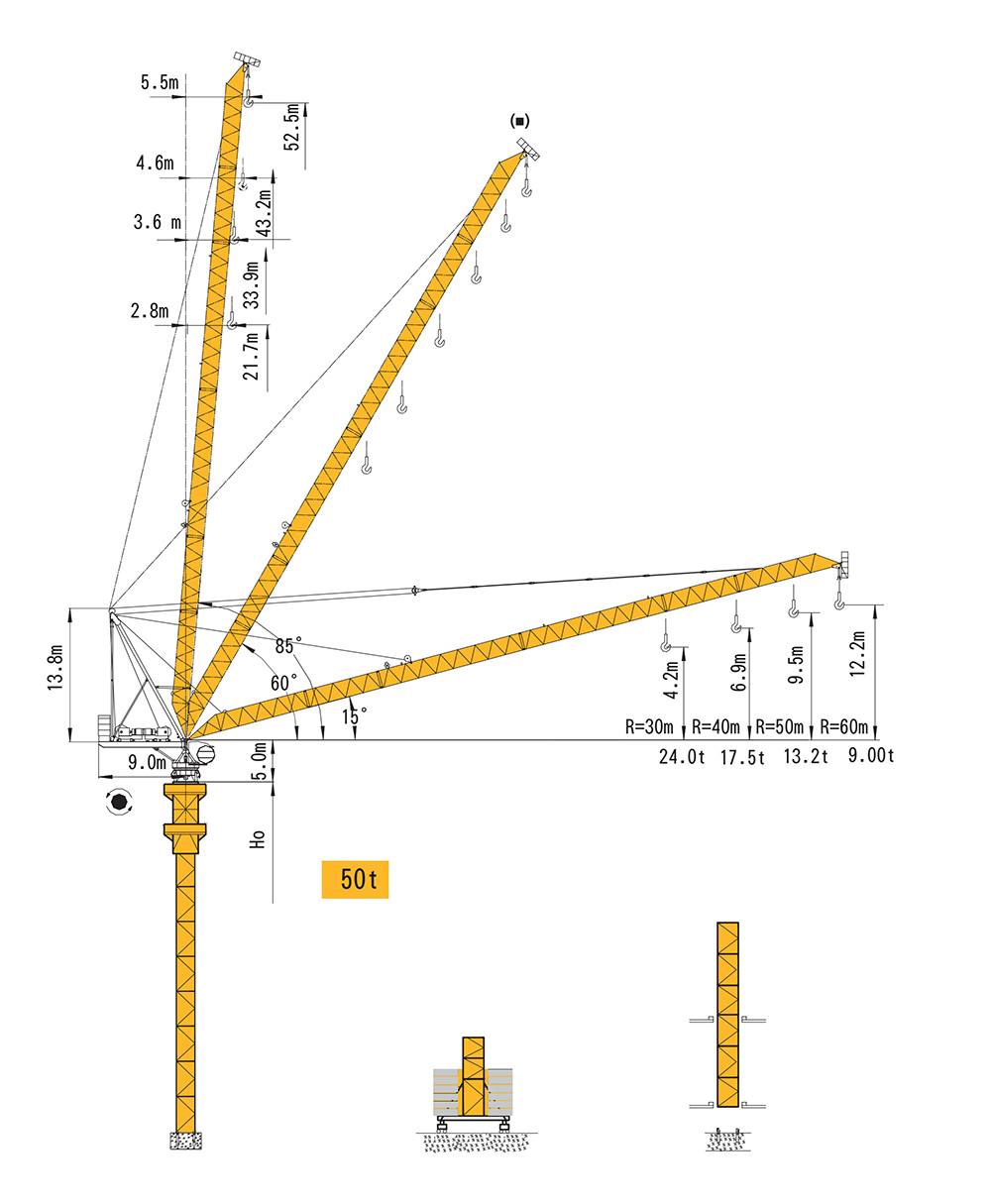

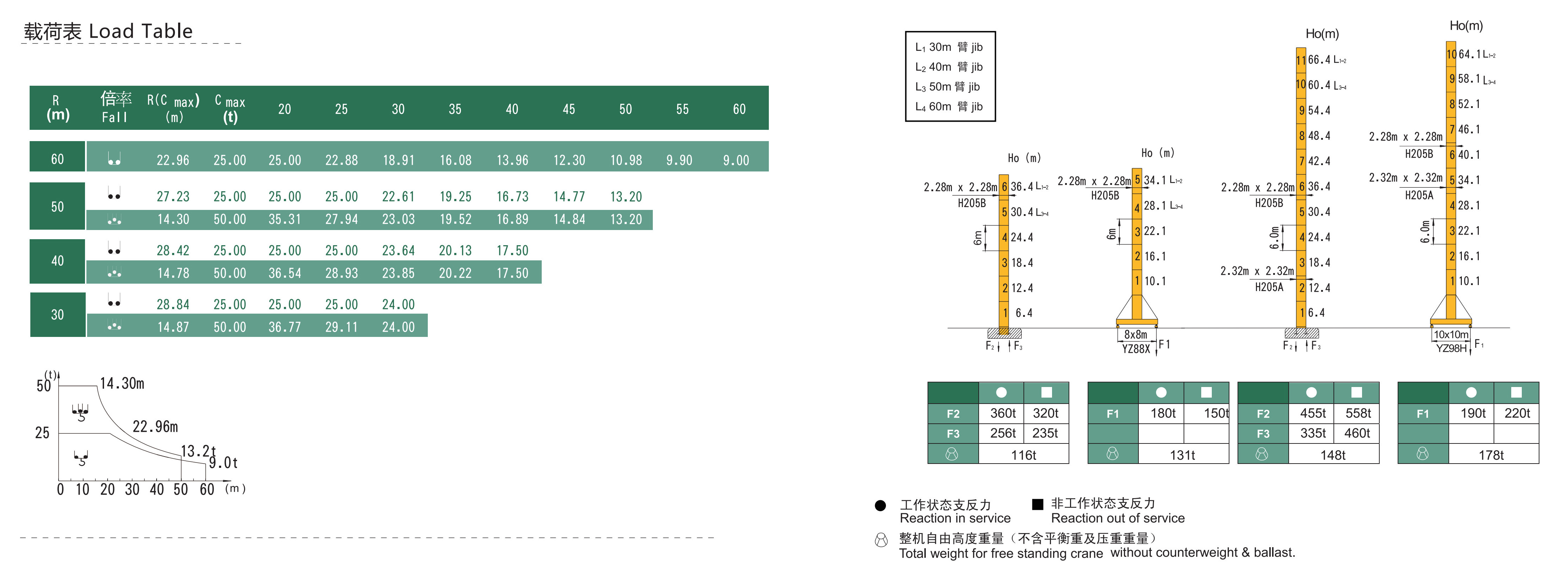

Performance Parameters

Mechanism							MotorkW

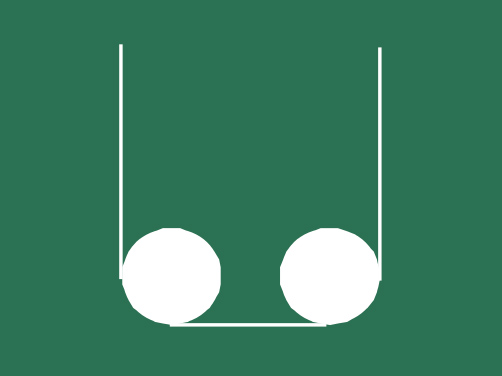

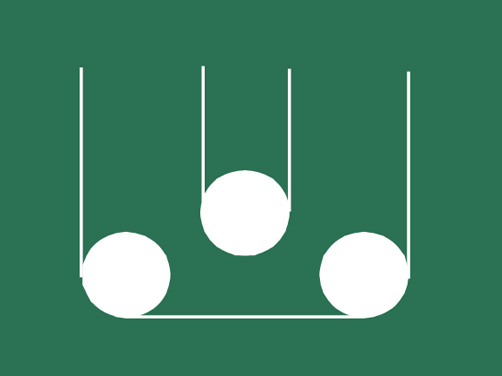

Mechanism		m/min	t	m/min	t		MotorkW
	160LFV125B	0-32 J- 38 0-64	25.0 20.0 8.0	0-16 0-19 0-32	50.0 40.0 16.0	488m >488m*	160
	110DFV80B	15°-85°3min					110
	7.5R FCV	0-0.6rpm					3x7.5
	RT	8-16m/min					6x2.6/5.2

				kVA
380V (±5%) 50Hz/60H z				420

※ Contact with us, please.

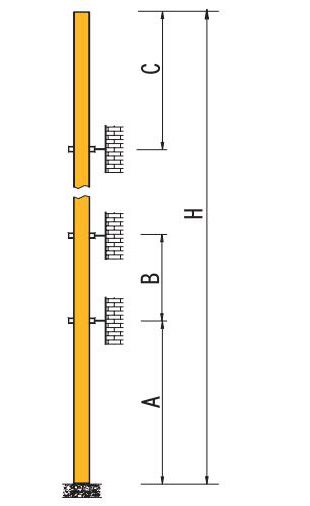

Mast	Jib length	A (m)	B (m)	C (m)	H (m)
H205B	L1-2	25	19	30.5	134 >134＊
H205B	L3-4	19	13	24.5	134 >134＊

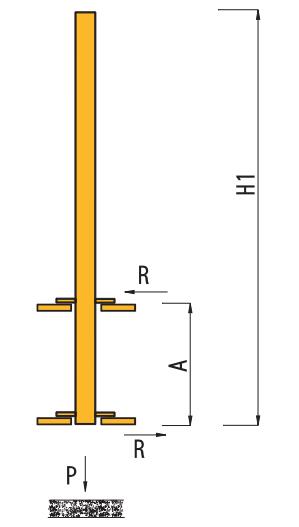

Mast	Jib length	H1 (M)	A (M)	P (M)	R (M)	X (M)	Y (M)
H205B	L1	※	12-18	※	※	3.28	2.40
	L2	※		※	※	3.28	2.40
	L3	※		※	※	3.28	2.40
	L4	※		※	※	3.28	2.40

Product Introduction

The GHD6090-50 has a sturdy mechanism for smooth and controlled operation. It is equipped with a powerful motor that provides variable speeds of 0-32 m/min when lifting and luffing, ensuring efficiency in a wide range of applications. With a maximum boom length of 50.0 m and a maximum lifting capacity of 56 t, this crane is designed to handle the heavy lifting required for power and thermal power plant construction.

The GHD6090-50 is designed with safety as the top priority. It incorporates advanced safety features such as overload reinforcement test and ultimate rope breaking test to provide comprehensive safety verification. The crane structure adopts a modular design, with high interchangeability and versatility, which facilitates maintenance and component replacement.

The tower body of this crane adopts high-strength cold-formed steel, with good lifting performance and good structural integrity; the boom adopts double upper chord design, high-strength material, and the structure is lighter and safer; the painting process meets automotive standards, is durable and not easy to rust; the welding meets international standards, and the product quality is reliable and stable.

GHD6090-50 is also environmentally friendly, and the structural design prevents internal corrosion and prolongs the service life. The tower section is compact and modular, with strong interchangeability and a quick connection device to improve on-site installation efficiency.

GHD6090-50 is equipped with a highly integrated AMCS intelligent management system, which integrates functions such as face recognition, voice prompts, anti-collision, video monitoring, and parametric safety monitoring to achieve seamless docking. The system simplifies operation and ensures comfortable human-machine interaction.

To learn more about the GHD6090-50 jib tower crane and how it can enhance your construction capabilities, understand the strength and versatility of the GHD6090-50, making it the key to your confident and efficient achievement of construction goals.
