Topless Tower Crane GHP7524-18

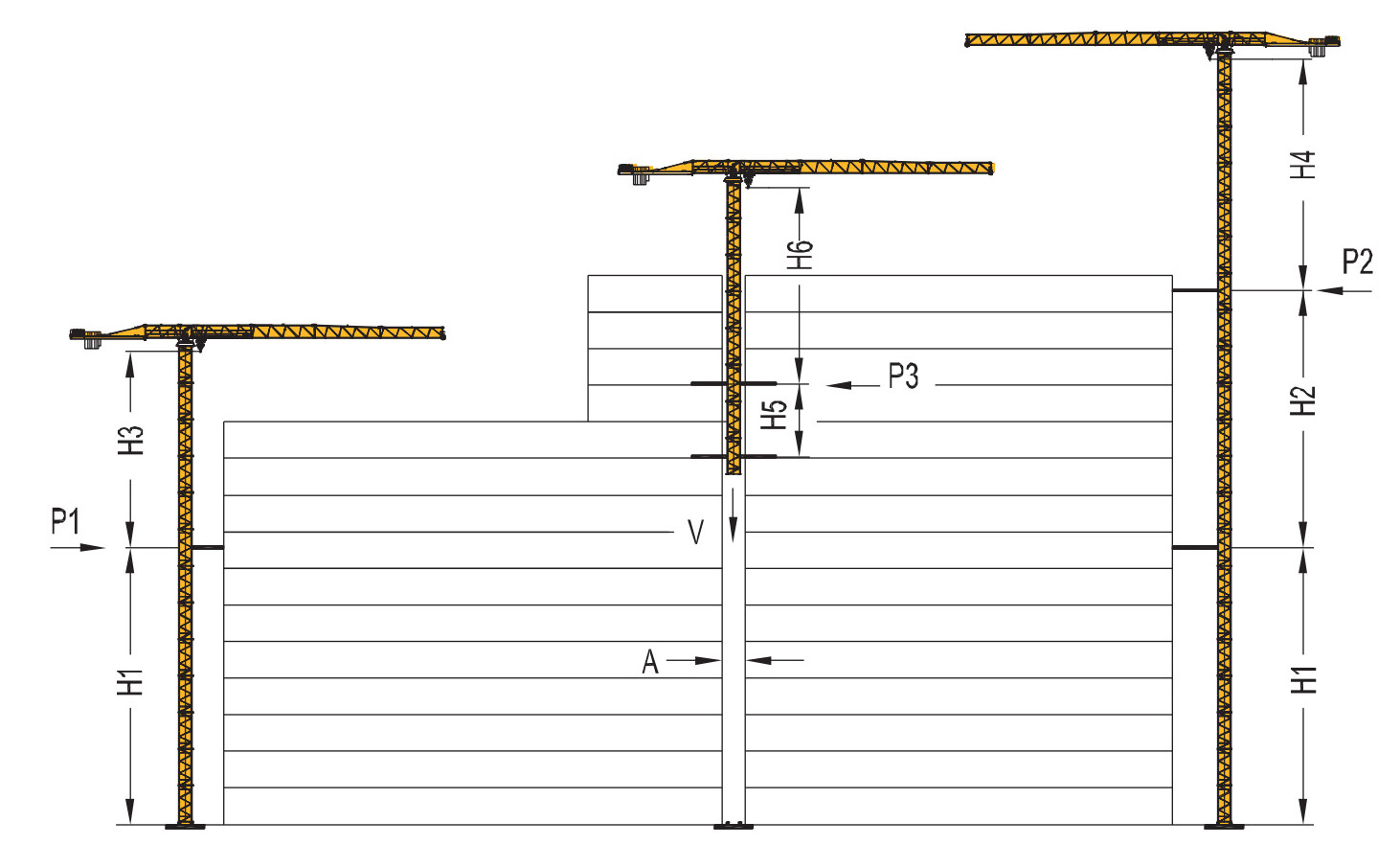

Anchorages
Tower body |
T23.18 |
||
|
m |
Working condition |
Non operating state |
t |
t |
||
H1 |
54.2 |
|
— |
H2 |
48,0 |
— |
― |
H3 |
58,8 |
— |
|
H4 |
52,8 |
|
|
H5 |
12,0 |
― |
— |
H6 |
34,8 |
|
— |
P1 |
|
23,0 |
26,0 |
P2 |
▁ |
20,5 |
22,0 |
P3 |
|
22,0 |
25,0 |
V |
― — |
100,0 |
90,0 |
A |
2,6 |
|
|
Mechanisms
Mechanical Performance |
Single head |
Double headed |
|
kW |
||||||
Lifting |
75LVF40 |
m/min |
0-32 |
0-64 |
0-96 |
0-16 |
0-32 |
0-48 |
500m |
75 |
t |
8 |
4 |
2 |
16 |
8 |
4 |
||||
70RCS40 |
m/min |
0-30 |
0-60 |
0-15 |
0-30 |
550m |
51.5 |
|||
t |
8 |
4 |
16 |
8 |
||||||
90LVF40 |
m/min |
0-52 |
0-104 |
0-152 |
0-26 |
0-52 |
0-78 |
600m* |
90 |
|
t |
8 |
4 |
2 |
16 |
8 |
4 |
||||
Amplitude |
7.5TVF |
m/min |
0-65 |
185Nm |
||||||
8T3V8 |
m/min |
4,3/43/88 |
5,5/5.5/80Nm |
|||||||
Rotation |
145SVT |
r/min |
0-0.67 |
145Nm×3 |
||||||
Walk |
5.5TRVF |
m/min |
0-30 |
5,5×4 |
||||||
Power supply |
380V 50Hz /440V 60Hz |
|||||||||
Total power |
75LVF:109 kVA |
|||||||||
Other forms of lifting power |
90LVF:127kVA 70RCS:83kVA |
|||||||||

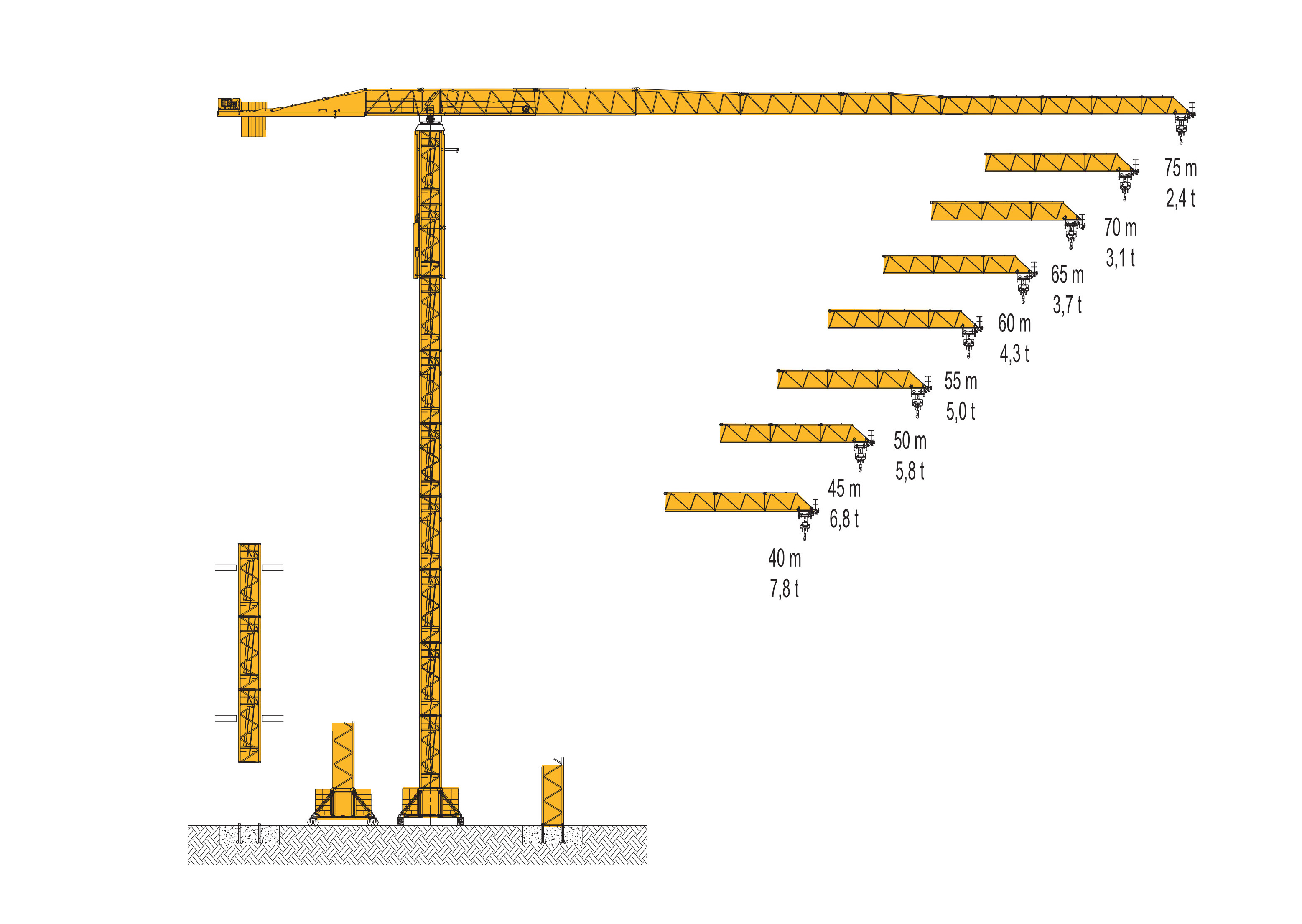

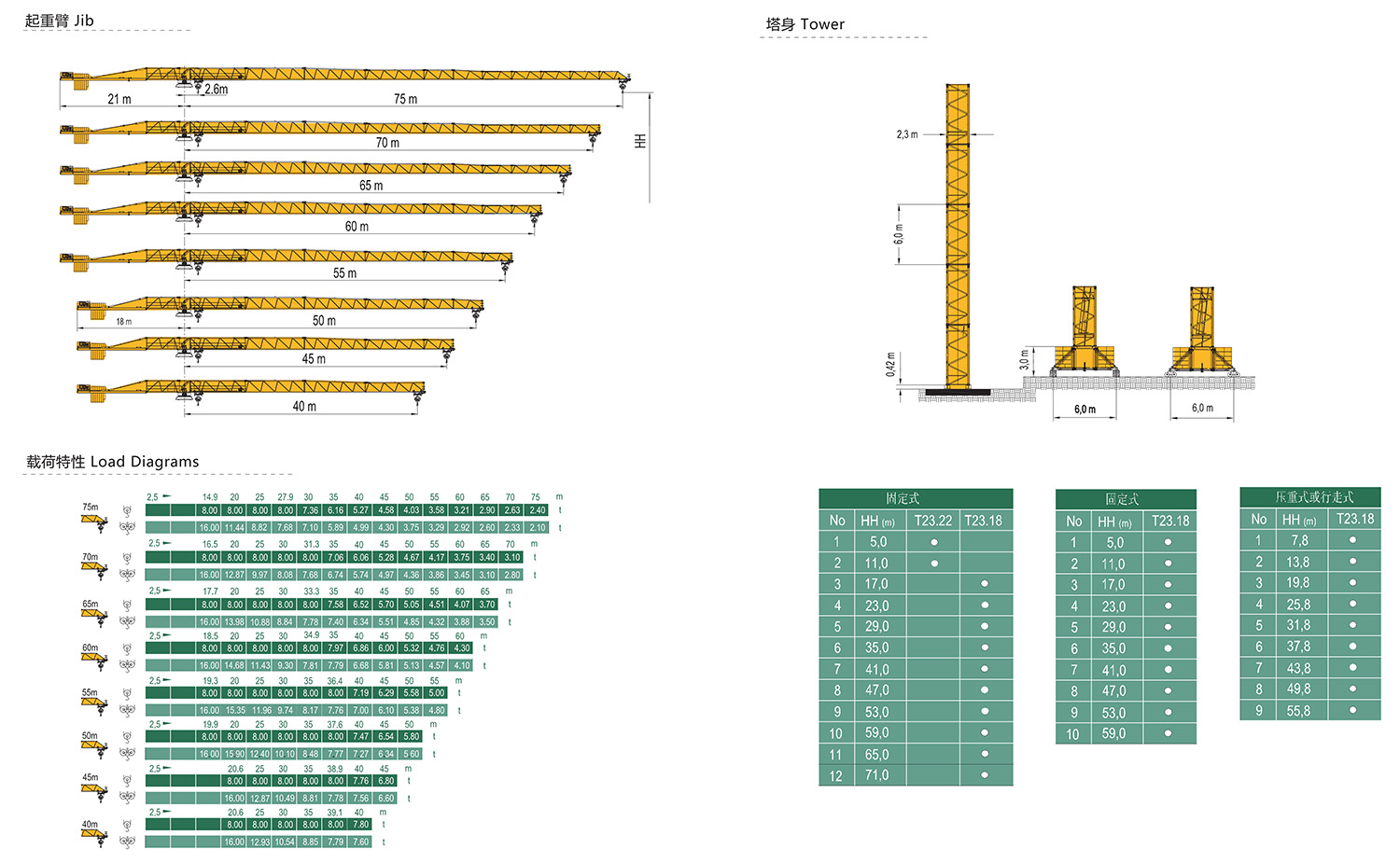

Product Size
Product Introduction
The GHP7524-18 flat-top tower crane from Shandong Dazheng Trading Co., Ltd. is an engineering masterpiece designed for the most demanding construction projects. Adhering to the concept of "high safety, intelligence, powerful performance, excellent quality, excellent efficiency, and modular refinement", the crane is an ideal choice for lifting super-large tonnage components in power and thermal power construction.
With a sturdy mechanical structure, a maximum lifting capacity of 15 tons and a boom length of up to 75 meters, the GHP7524-18 can provide a wide range of coverage for your lifting needs. Its flat-top design provides a larger working range and improved load handling capabilities, ensuring efficiency in a variety of construction applications.
The GHP7524-18 redefines safety, it includes advanced features such as an overload protection system and a limit switch device that instantly triggers an alarm in the event of removal or failure. The crane has been rigorously tested, including overload reinforcement and limit rope breaking tests, to ensure its inherent safety and reliability.
The crane structure adopts high-strength cold-formed steel, which has high safety and superior lifting performance; modular design, strong interchangeability and versatility, easy maintenance and operation; the crane parts adopt automotive-grade spray paint, which is durable and not easy to rust; international welding standards, reliable and stable product quality.
GHP7524-18 is equipped with three transmission mechanisms, with efficient and advanced transmission technology, high working efficiency and smooth speed regulation; multi-level response closed-loop rotation control technology, faster response speed and smoother operation.
To improve the convenience of operation, the crane is equipped with a highly integrated AMCS intelligent management system, which integrates functions such as face recognition, voice prompts, anti-collision, video monitoring, parametric safety monitoring, etc., to simplify operation and improve the comfort of human-machine interaction.
Shandong Dazheng Trading Co., Ltd. is committed to providing the highest quality machinery for the construction industry. With the GHP7524-18 flat-top tower crane, we have set a new benchmark for lifting solutions. Join us to create a stronger, safer and more efficient future for the construction industry.
