Topless Tower Crane GHP8030-20

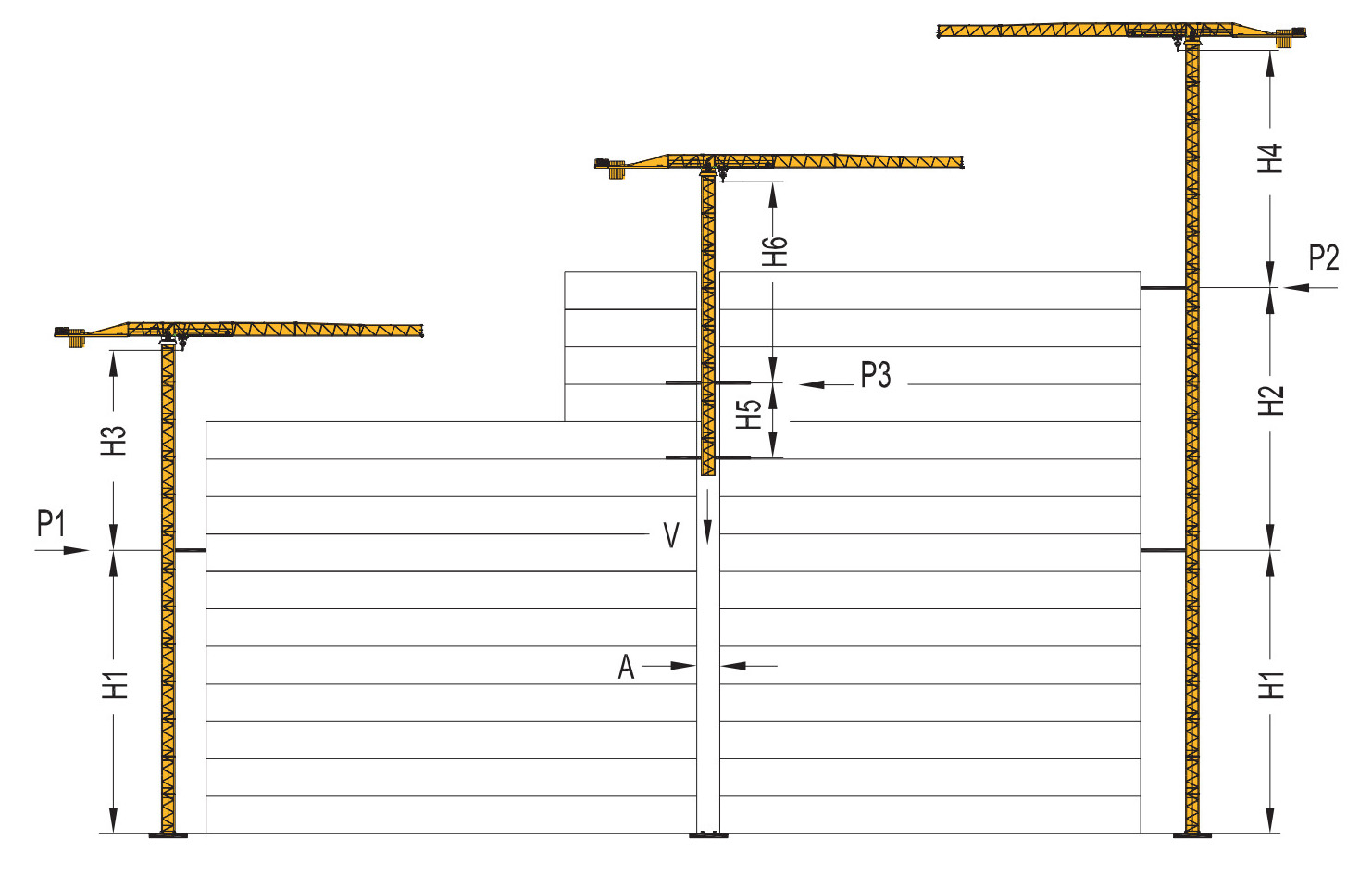

Anchorages
Tower body |
TG23.22 |
T23.18 |
||||
|
m |
Working condition |
Non operating state |
m |
Working condition |
Non operating state |
t |
t |
t |
t |
|||
H1 |
33,4 |
― |
― |
21,4 |
― |
― |
H2 |
36,0 |
― |
― |
24,0 |
― |
― |
H3 |
39,0 |
― |
― |
27,0 |
— |
― |
H4 |
33,0 |
― |
― |
21,0 |
― |
― |
H5 |
12,0 |
― |
― |
12,0 |
― |
|
H6 |
30,0 |
― |
― |
18,0 |
― |
― |
P1 |
― |
20,3 |
34.4 |
― |
15,7 |
22.1 |
P2 |
― |
19,9 |
31,3 |
― |
14,7 |
21.4 |
P3 |
― |
22,6 |
36,7 |
― |
19,5 |
25.7 |
V |
― |
122 |
102 |
_ |
112,6 |
92,6 |
A |
2,6 |
― |
― |
2,6 |
― |
― |
B |
2,6 |
― |
― |
2,6 |
― |
― |
Mechanisms
Mechanical Performance |
Single hook |
Double hook |
|
kW |
|||||
Lifting |
m/min |
0-120,0 |
0-80,0 |
0-40,0 |
0-60,0 |
0-40,0 |
0-20,0 |
600m |
90 |
t |
2,5 |
5,0 |
10,0 |
5,0 |
10,0 |
20,0 |
|||
m/min |
0-180,0 |
0-120,0 |
0-60,0 |
0-90,0 |
0-60,0 |
0-30,0 |
800m |
132 |
|
t |
2,5 |
5,0 |
10,0 |
5,0 |
10,0 |
20,0 |
|||
Amplitude |
m/min |
0-63 |
185Nm |
||||||
13,5/42/84 |
2.6/7.5/9 |
||||||||
Rotation |
r/min |
0.60 |
145 Nm×3 |
||||||
Walk |
m/min |
22/11 |
7,5×4 |
||||||
Power supply |
380V 50Hz / 440V 60Hz |
||||||||

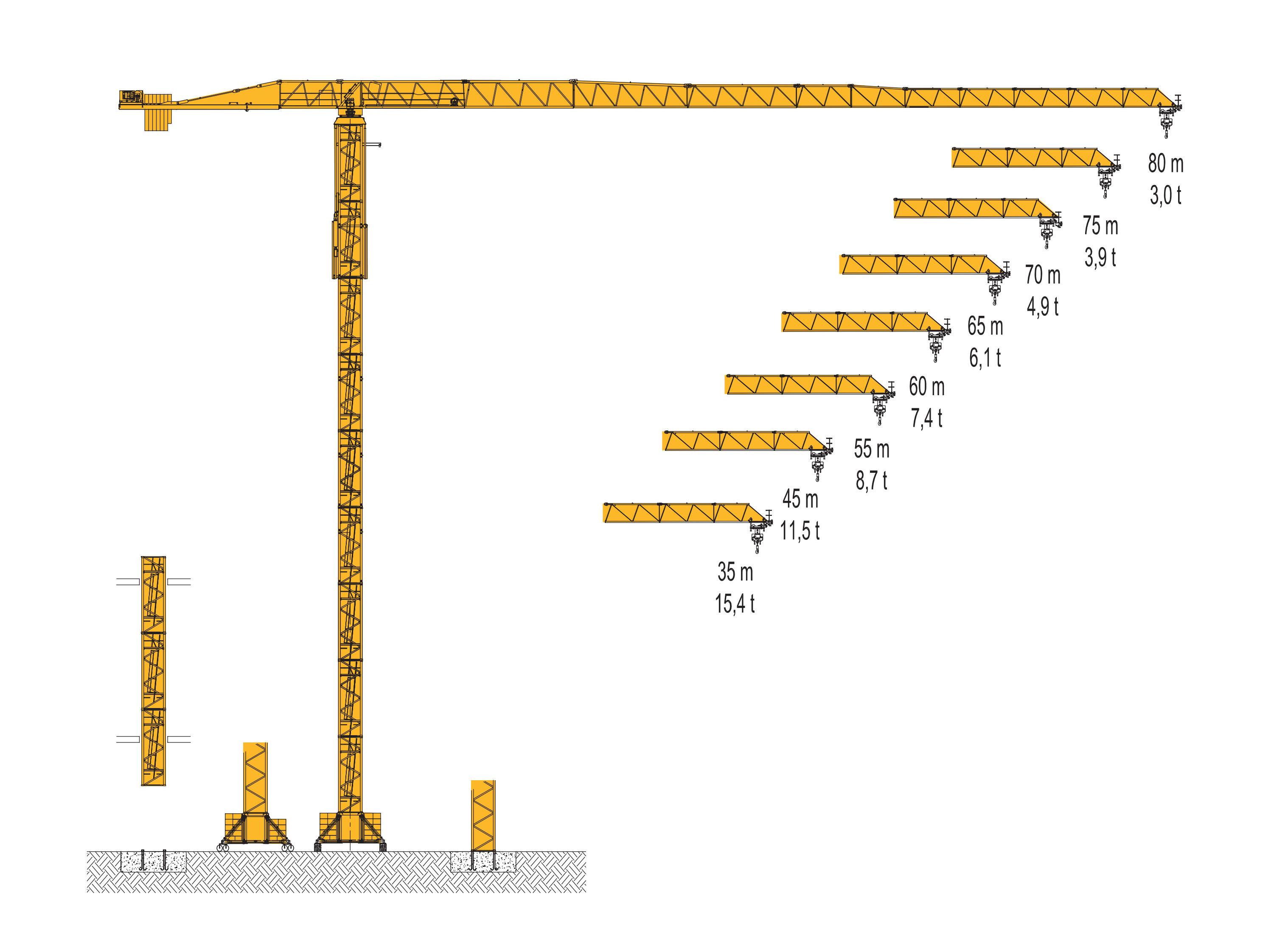

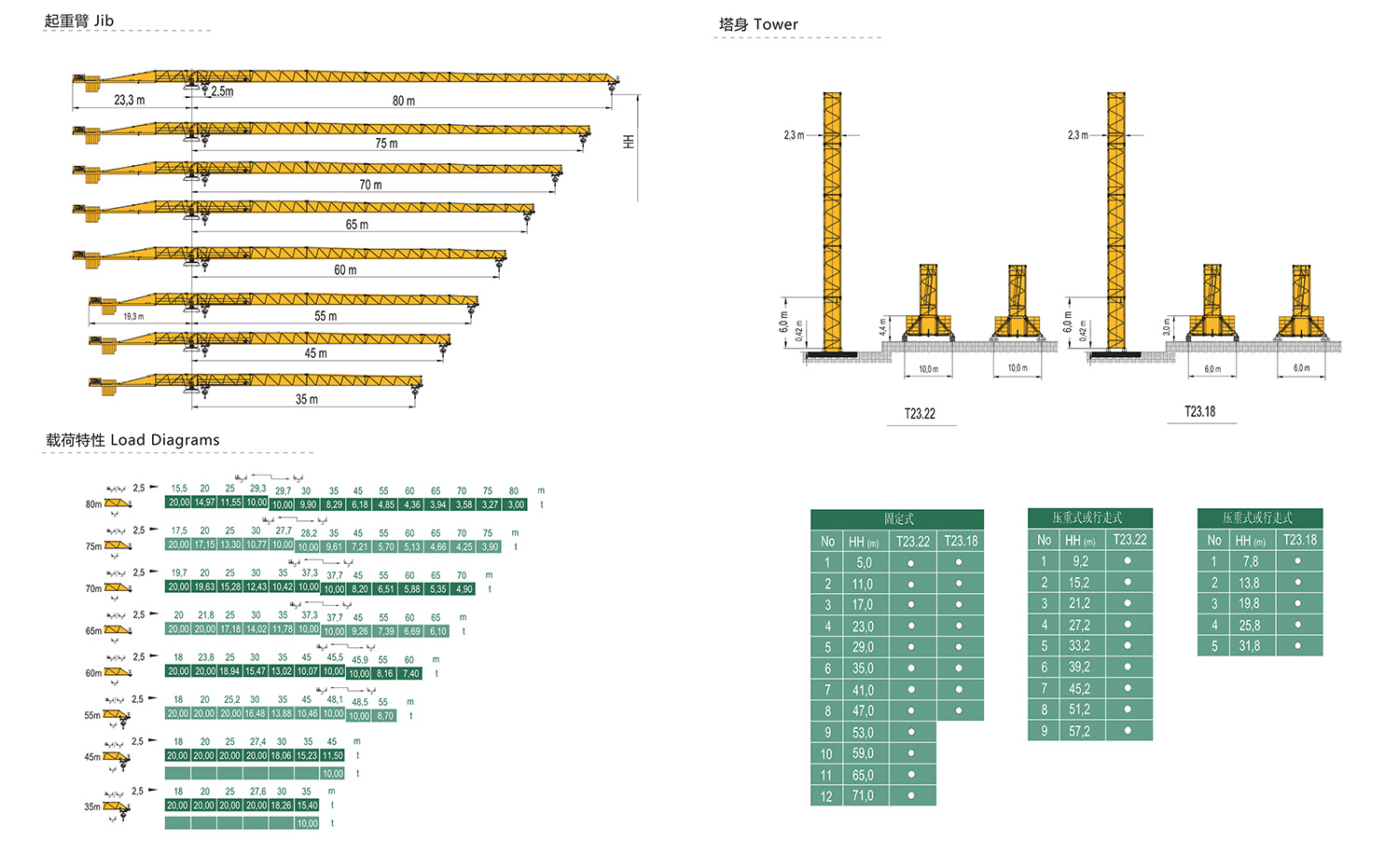

Product Size
Product Introduction
The GHP78030-20 boasts an impressive lifting capacity, capable of handling loads of up to 3.0 tonnes at a maximum boom length of 80 meters. Its flat top design provides a larger working envelope and enhanced load handling capabilities, making it ideal for a wide range of construction applications. The crane’s sturdy mechanism ensures smooth operation, and a maximum luffing speed of 0-120.0 m/min ensures your construction schedule is met without compromising precision.
Safety was a top priority in the design of the GHP78030-20. The crane is equipped with advanced safety features such as an overload protection system and state-of-the-art control mechanisms to ensure safe operation at all times. Its high-strength steel structure provides durability and stability even in the most challenging environments.
The GHP78030-20 is more than just a crane; it's a testament to Shandong Guohong's commitment to innovation. Its user-friendly design and intuitive control system make it accessible to operators of all skill levels. The crane's components are designed for easy maintenance, reducing downtime and increasing the overall efficiency of construction operations.
Shandong Dazheng International Trade Co., Ltd. is committed to providing the highest quality machinery to the construction industry. With the GHP78030-20 flat top tower crane, we are setting a new standard for lifting solutions. Join us in building a stronger, safer, and more efficient future for construction.
